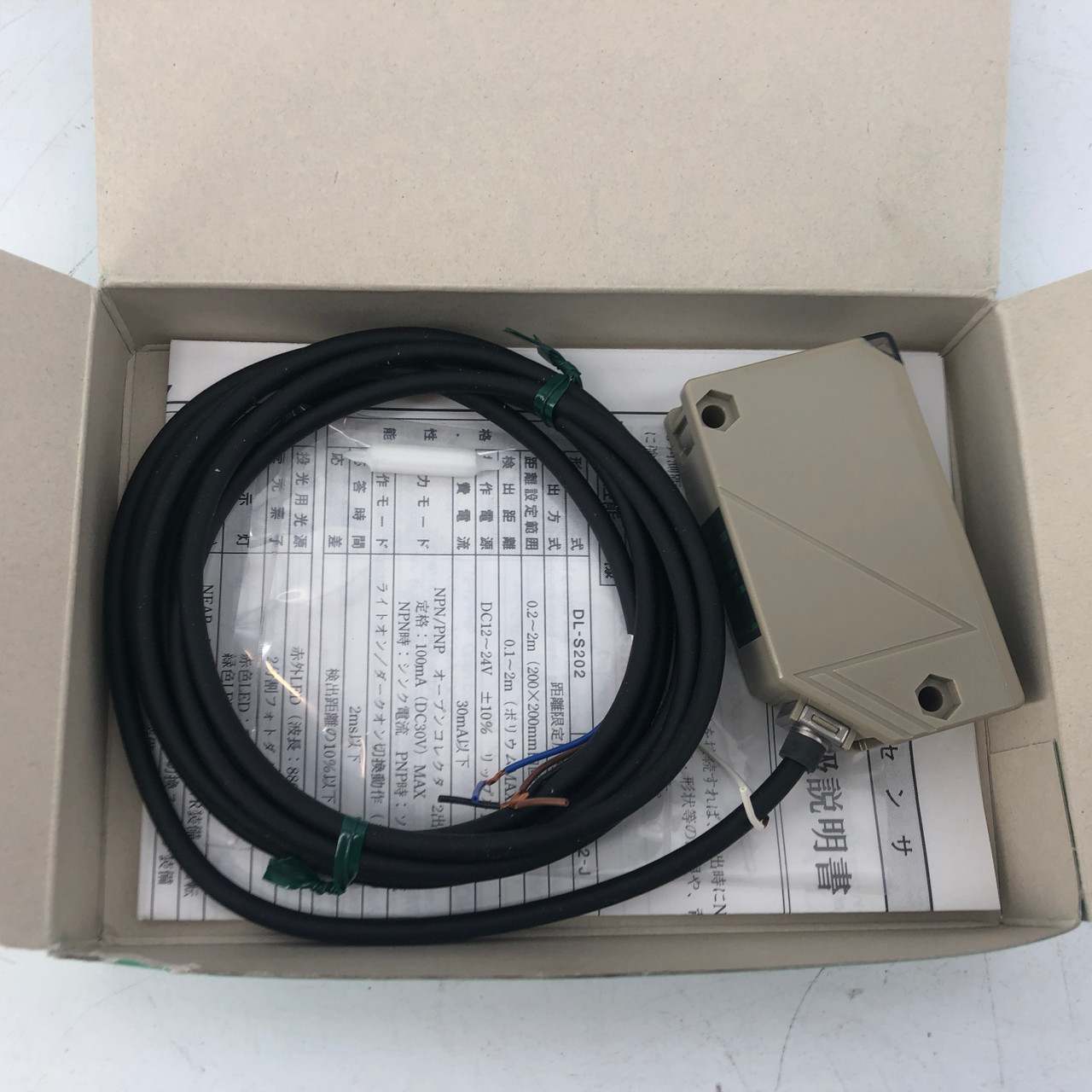

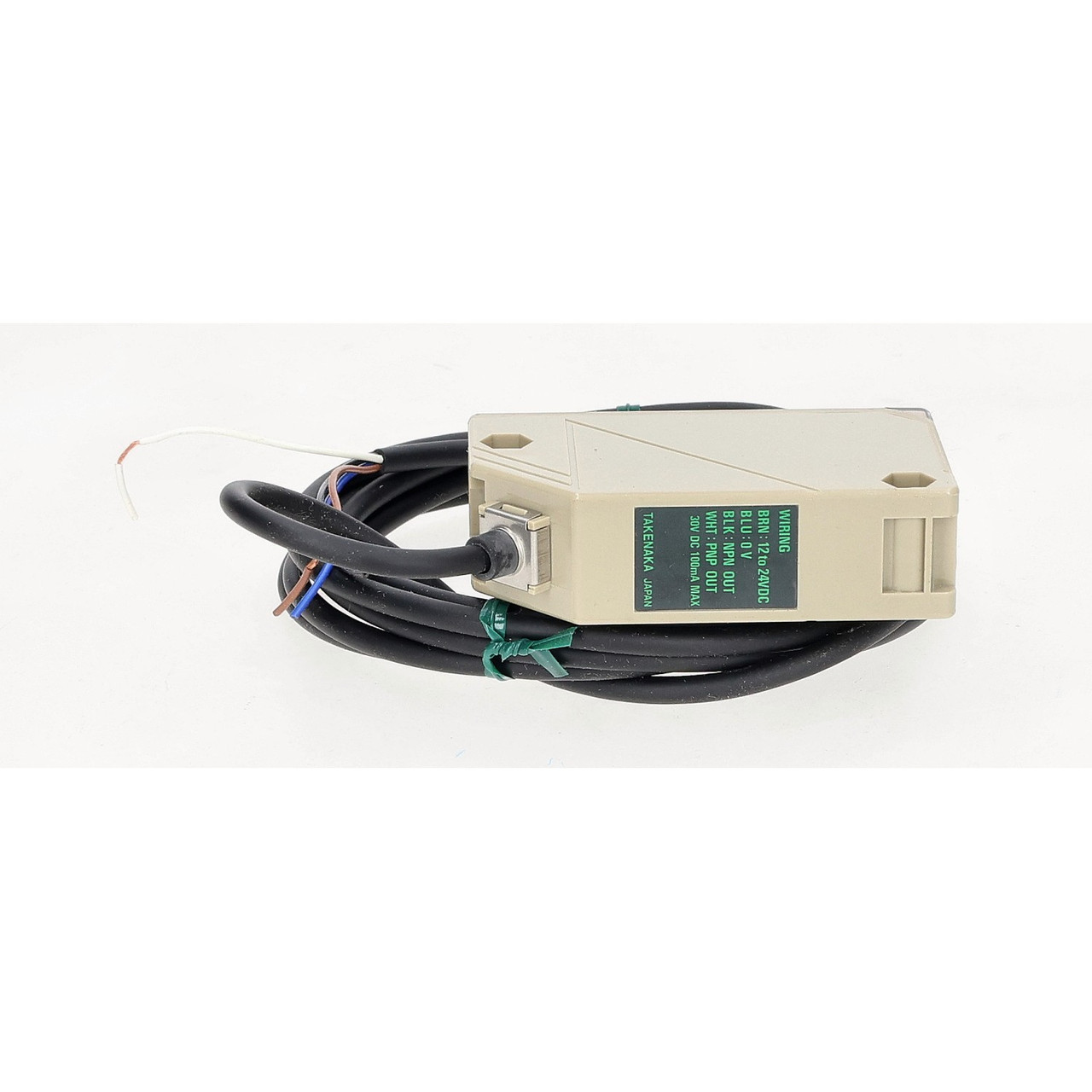

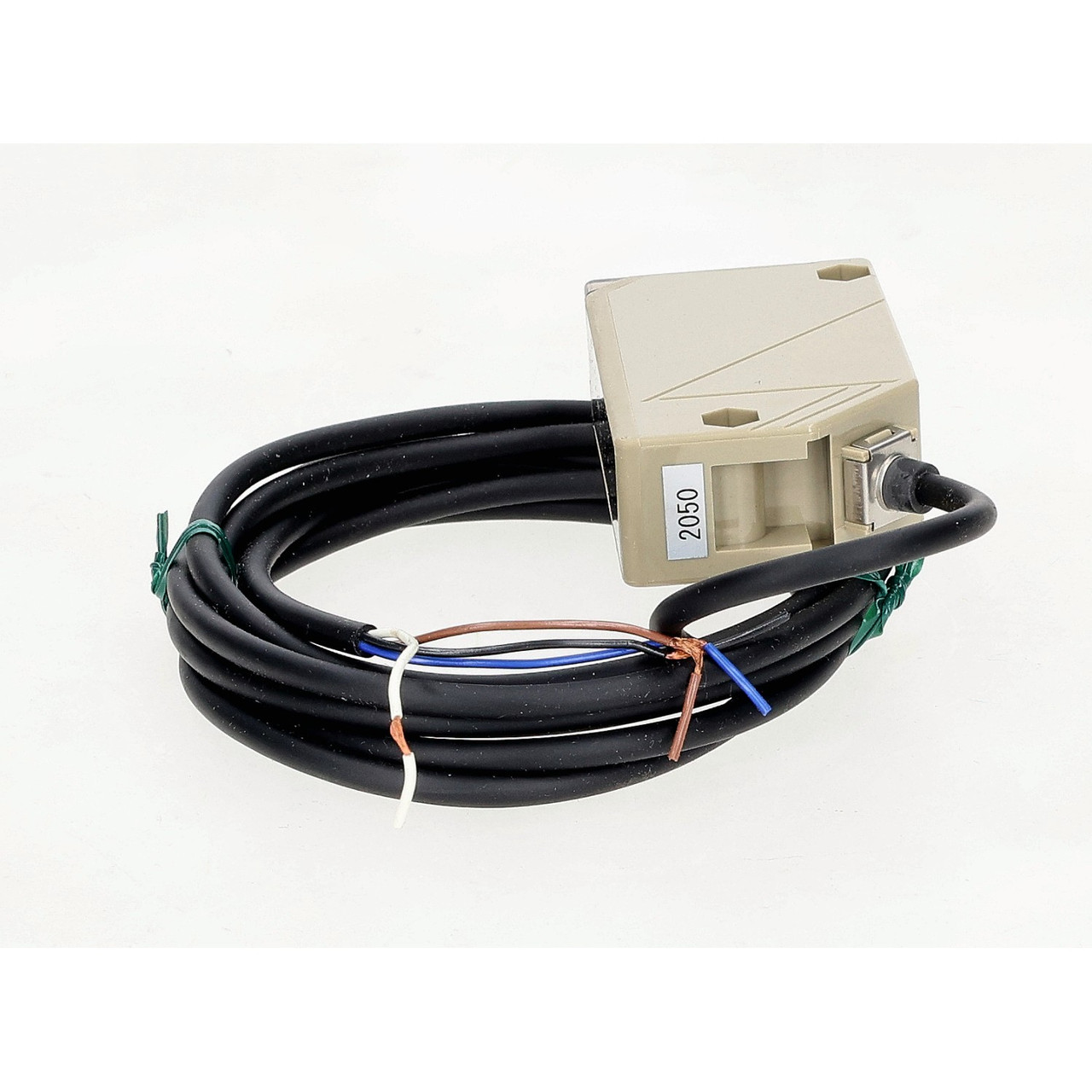

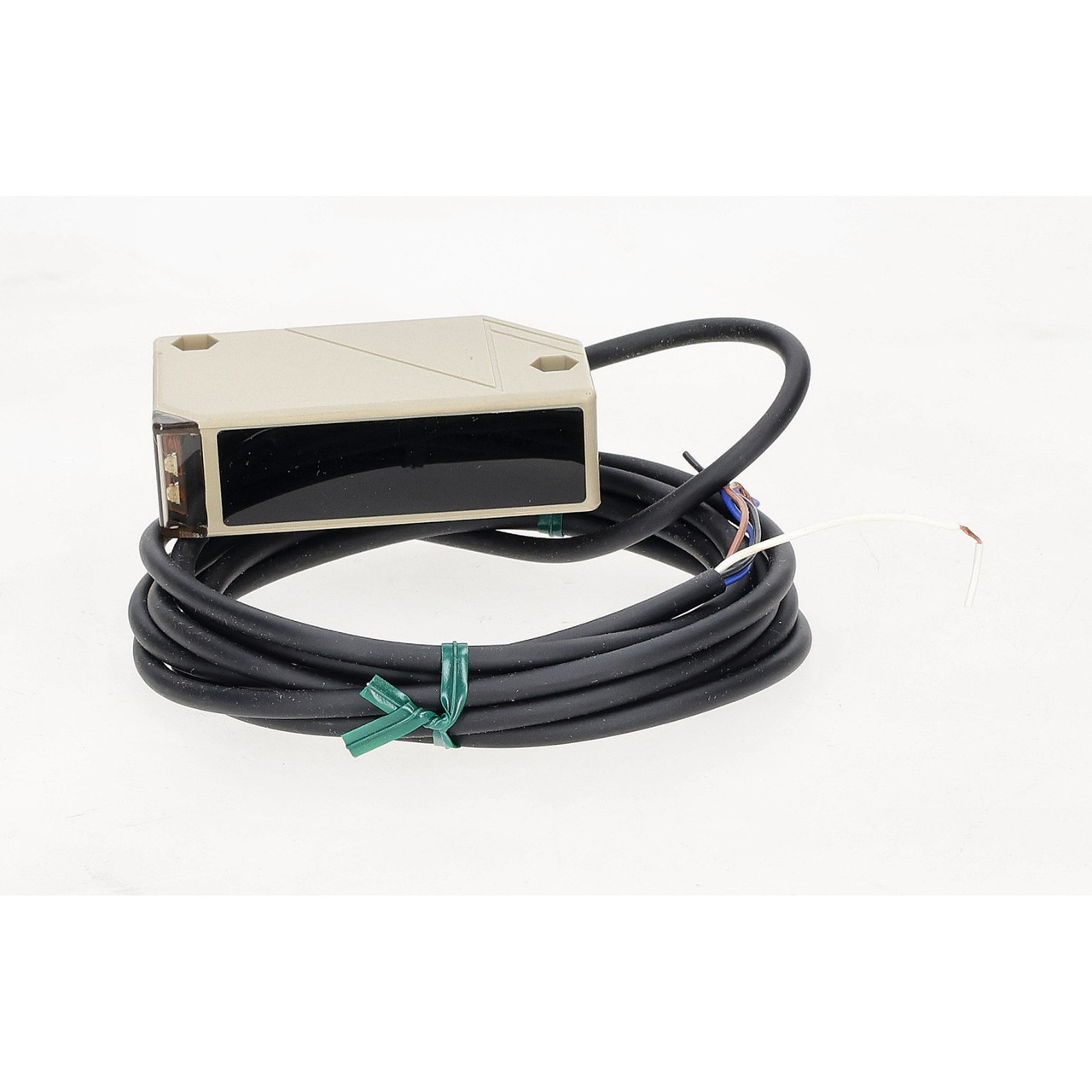

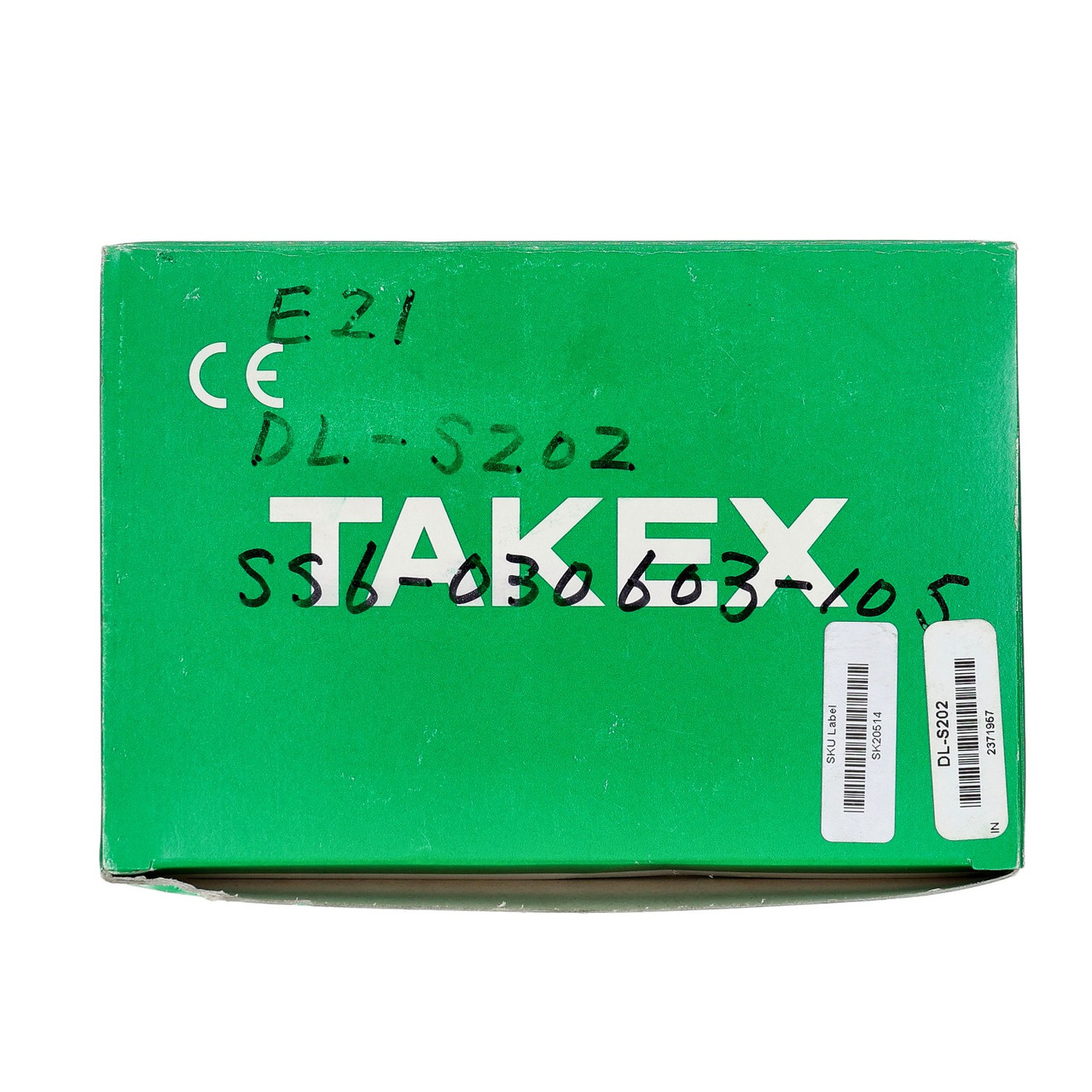

AVAILABLE FOR SALE IS A TAKEX DL-S202 BACKGROUND SUPRESSION PHOTOELECTRIC EYE SWITCH. THIS PRODUCT IS NEW IN AN OPEN BOX. THE BOX HAS BEEN OPENED. SOME OF THE BOX CONTENTS MIGHT HAVE BEEN REMOVED, AND EVERYTHING THAT WOULD'VE BEEN INCLUDED MAY OR MAY NOT BE INCLUDED. PLEASE REVIEW THE PHOTOS TO DETERMINE IF ANY COMPONENTS ARE MISSING OR ASK QUESTIONS PRIOR TO PURCHASE.
MAKE: TAKEX
MODEL: DL-S202
- Detection Method: Limited range reflective (background suppression)
- Detecting Distance: 0.1 to 2.0 meters (adjustable)
- Setting Distance: 0.2 to 2.0 meters (with 200×200 mm white paper)
- Light Source: Infrared LED (880 nm)
- Light Receiver: 2-segment photodiode for stable distance-based detection
- Response Time: ≤ 2 ms
- Output Type: NPN/PNP open collector (2 outputs)
- Max Load: 100 mA at 30 VDC
- Operation Modes: Light ON / Dark ON (selectable via switch)
- Indicators:
- Red LED: Operation
- Green LED: Stability
- Adjustments:
- NEAR/FAR: 5-turn optical distance adjustment
- Mode Selector: Light ON / Dark ON switch
- Ambient Light Resistance:
- Sunlight: ≤ 10,000 lux
- Incandescent: ≤ 3,000 lux
- Operating Temperature: -25°C to +55°C (non-freezing)
- Humidity: 35–85% RH (non-condensing)
- Protection Rating: IP66 (dust-tight and water-resistant)
- Vibration Resistance: 10–55 Hz, 1.5 mm amplitude, 2 hours in 3 axes
- Shock Resistance: 500 m/s², 3 times in 3 axes
- Housing Material: Polyarylate (case and lens)
- Connection: 2-meter attached cable (4-core, Ø4 mm)
