Product Description

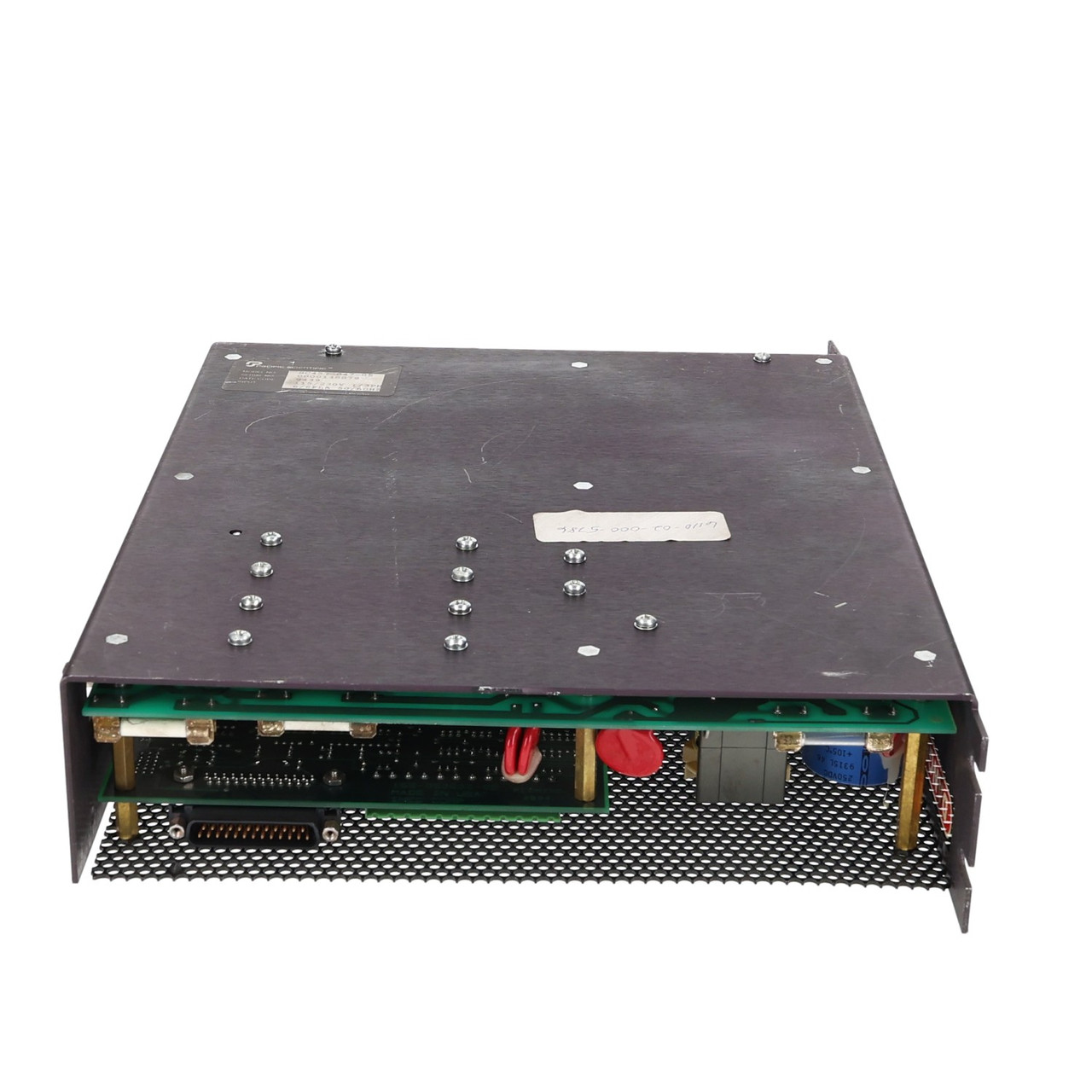

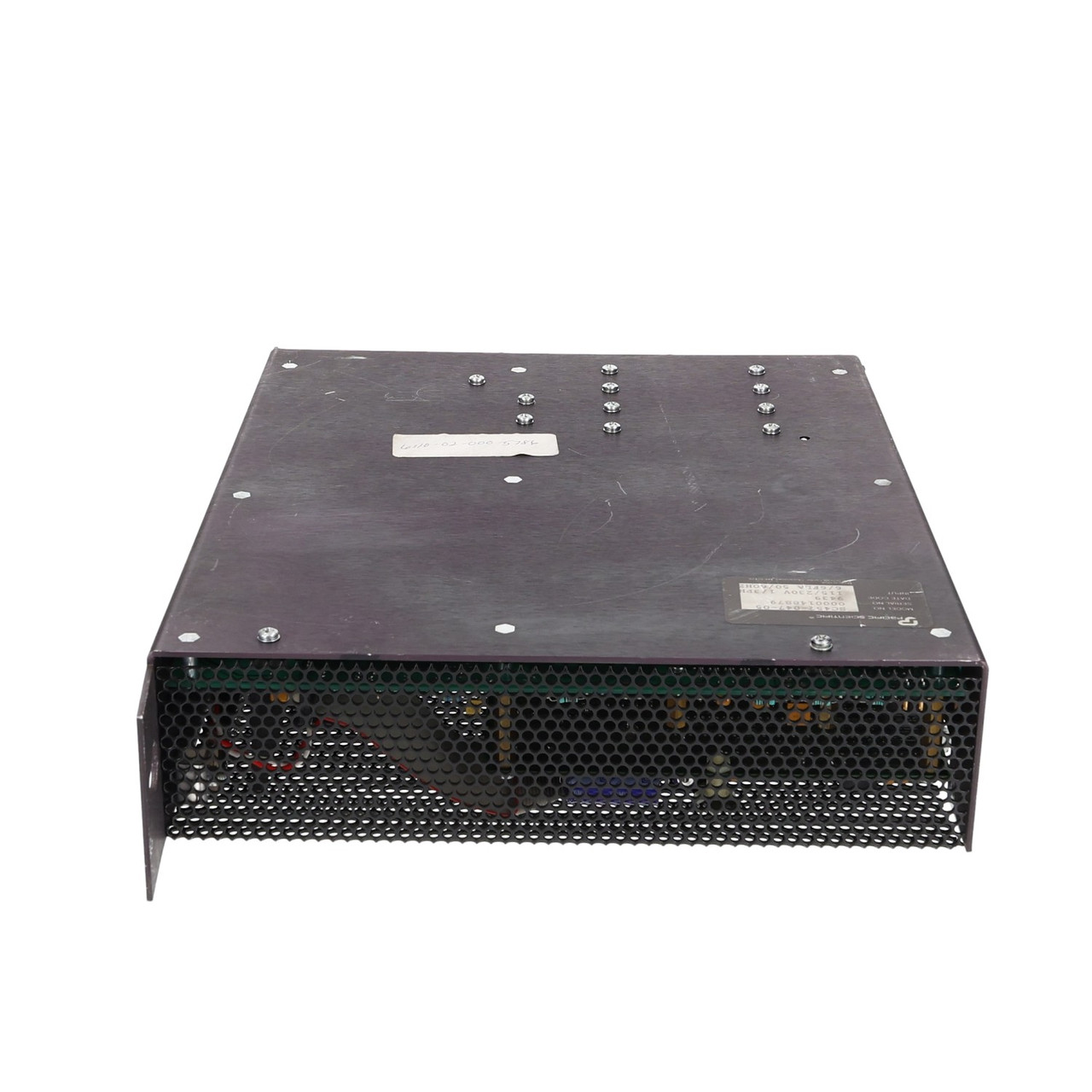

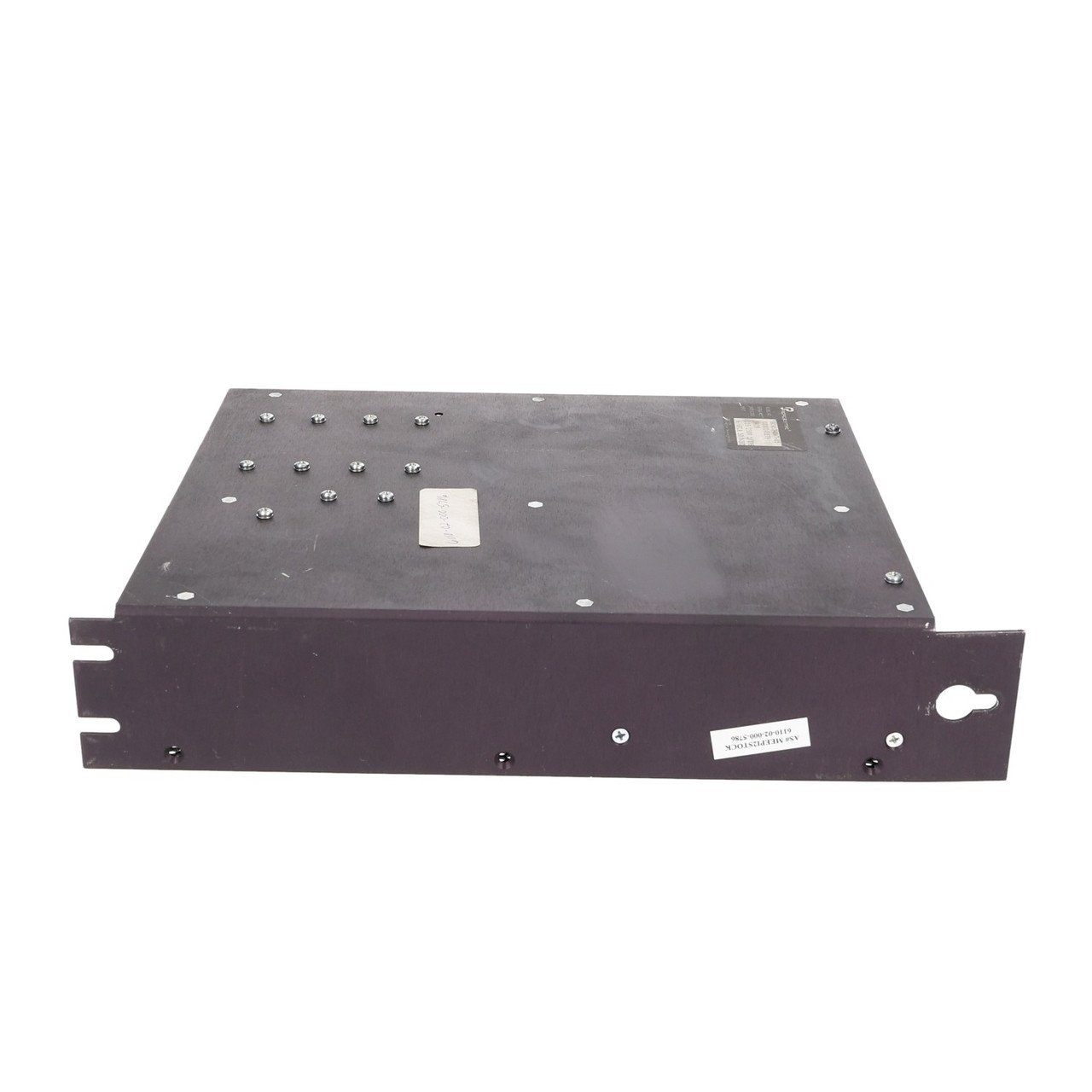

The Pacific Scientific SC452-047-05 is a high-performance, stand-alone servocontroller capable of independent four-quadrant control of a single permanent magnet (PM) brushless servomotor.
Brand: Pacific Scientific
MPN: SC452-047-05
Model: SC452-047-05 (SC450 Series)
Type: Servo Drive/Servocontroller
AC Input Voltage 115 / 230 VAC (+10%, -15%)
Input Phase 1-Phase or 3-Phase (47-63 Hz)
Continuous Current 3.50 Amps (RMS)
Peak Current 7.0 Amps (Peak)
Peak Power Output 2000 Watts
Feedback Supported Resolver Feedback
Software Interface PacSci ServoBASIC
Operating Temp 0°C to 50°C (Full Ratings)
Enclosure Type Open Chassis (Panel Mount)
Communication Port RS-232 / RS-485 Serial
Technical Connector Summary
J1 [Power]: 115/230 VAC Power Input
J2 [Motor]: 3-Phase Motor Output (Phases R, S, T)
J3 [Command I/O]: Common, Fault Out, and Motor Current Monitor
J4 [Monitor]: Tachometer Monitor (0.56 V/krpm)
J52 [Discrete I/O]: Programmable Start/Stop, Jog, and Fault Inputs/Outputs
J53 [Encoder]: Electronic Gearing Differential Input
J54 [Resolver]: Primary Motor Feedback Interface (Sine, Cosine, Excitation)
J55 [Serial Link]: RS-232 / RS-485 Communications
Mounting Requirement: This drive must be mounted in a vertical orientation to allow for proper natural convection cooling.
Space Requirements: Ensure a minimum unobstructed space of 4 inches (10 cm) above and below the controller and 1 inch (2.5 cm) on either side for adequate airflow.
Voltage Selection: The controller is equipped with a voltage selector switch located on the lower PC board for toggling between 115 and 230 VAC operation.
Safety Feature: Includes an integrated Watchdog Timer circuit to monitor microprocessor operation and ensure system stability.
| SC4 | Series identifier: SC450 Series |
| 5 | Feedback type: Resolver feedback |
| 2 | Power level: 3.5 A continuous, 7.0 A peak |
| 047 | Configuration code: defines input voltage, current, and feature set |
| 05 | Option code: defines firmware, I/O, and communication options |
