Product Description
This listing is for an Allen-Bradley 5069-L340ER Programmable Automation Controller (PAC), often used as a PLC Processor Module, belonging to the high-performance CompactLogix™ 5380 family (Bulletin 5069)

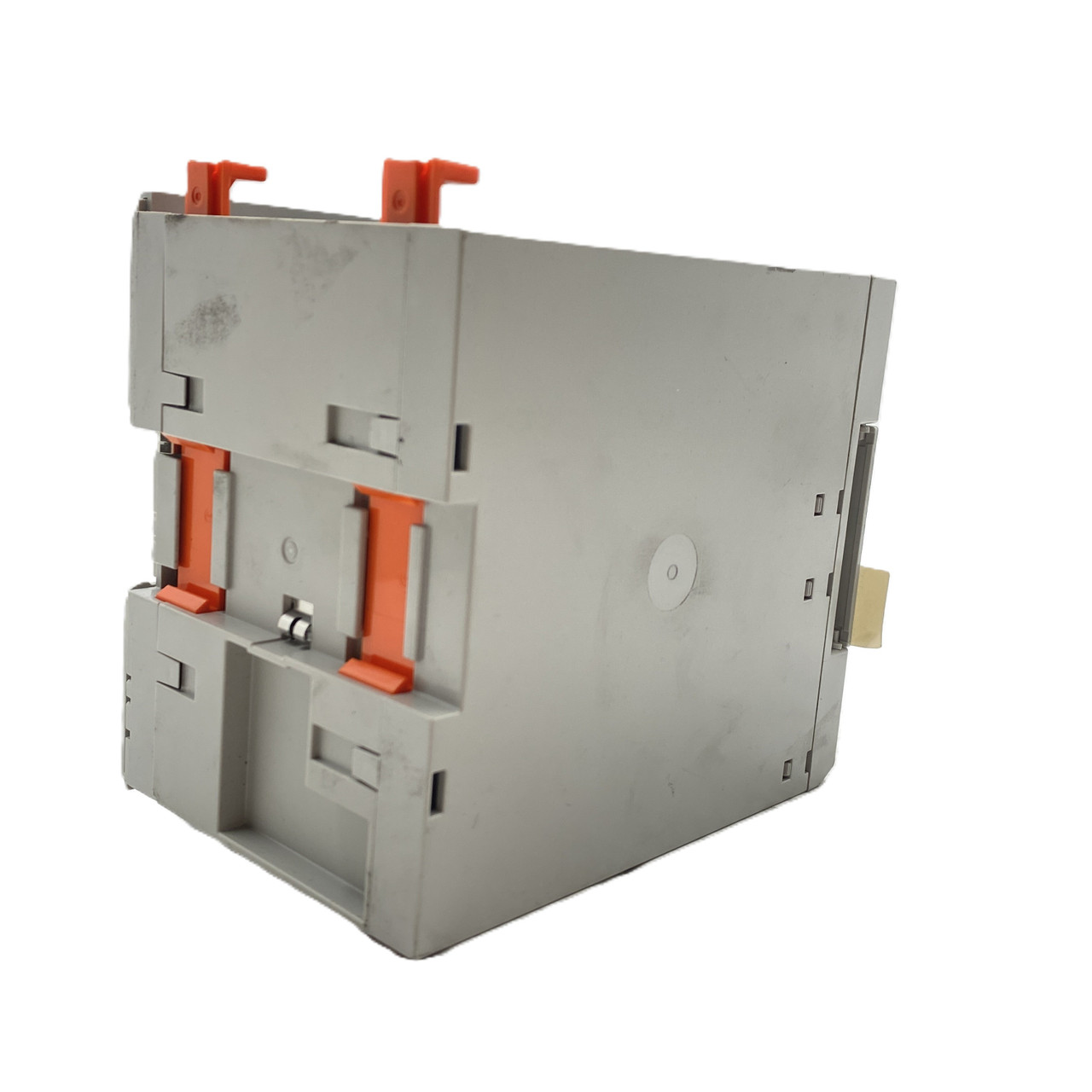

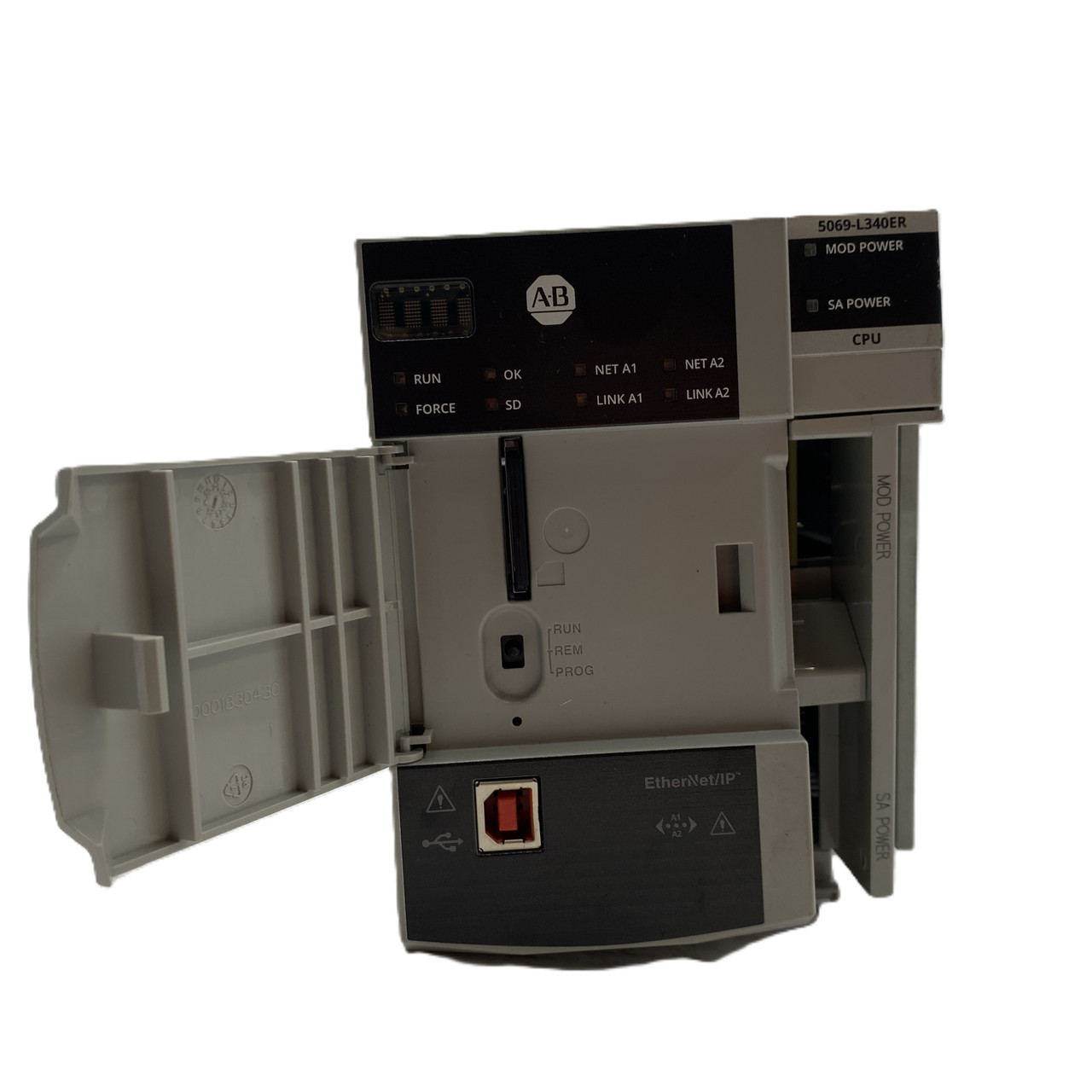

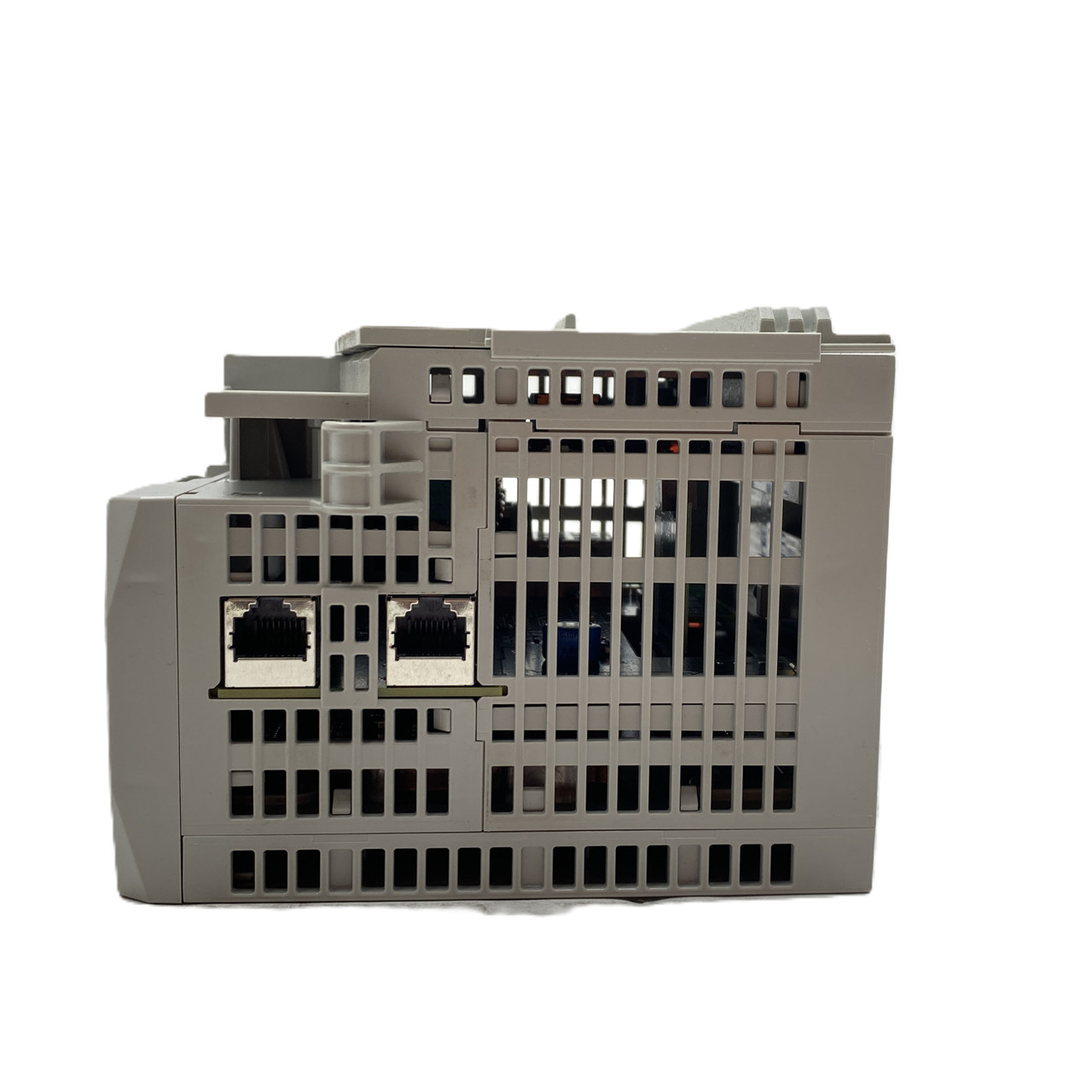

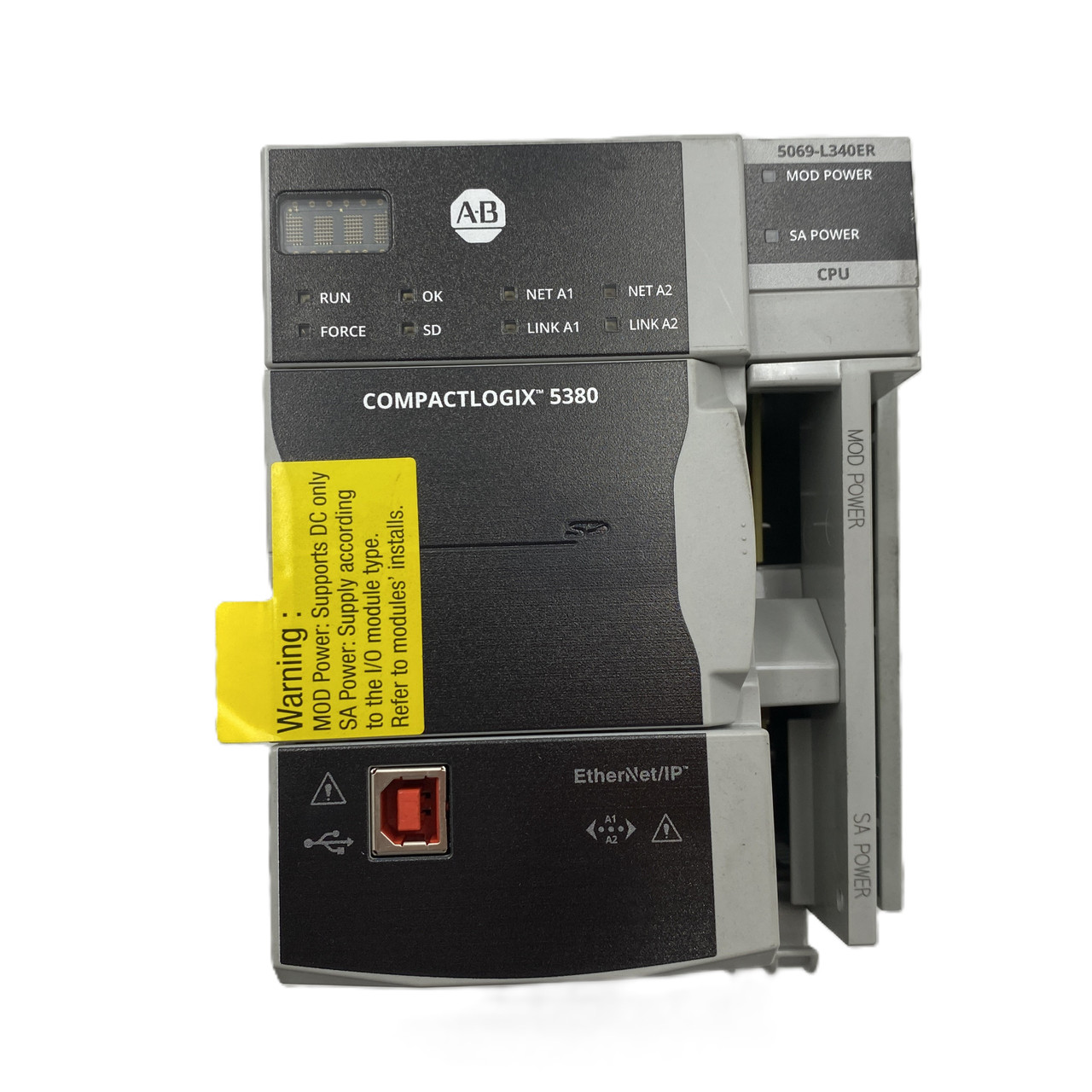

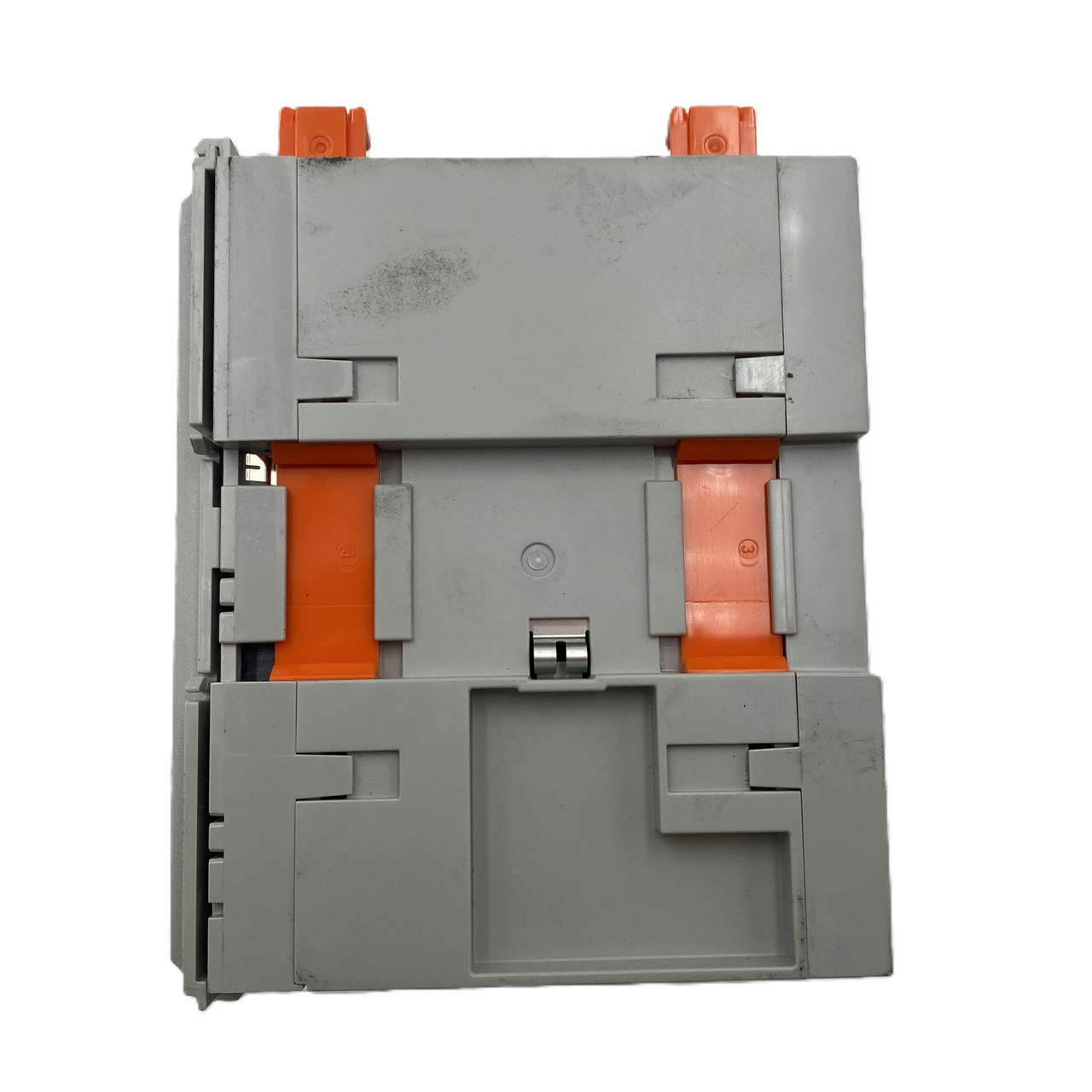

Condition: New No Box. The item is new and unused but does not include the original manufacturer's packaging or any physical paperwork/manuals. It will be shipped in appropriate non-original packaging. Please examine photos carefully for item appearance.
Key Features & Specifications:
- Manufacturer: Allen-Bradley / Rockwell Automation
- Catalog Number: 5069-L340ER
- Product Family: CompactLogix 5380 Standard Controller
- User Memory: 4 MB
- Local I/O Expansion: Supports up to 31 Compact 5000™ (5069) I/O modules
- Communication Ports:
- 2 x EtherNet/IP Ports (10/100/1000 Mbps Gigabit, Full-duplex)
- 1 x USB 2.0 Port (Type B, 12 Mbps, for temporary programming/configuration only)
- 2 x EtherNet/IP Ports (10/100/1000 Mbps Gigabit, Full-duplex)
- Networking:
- Supports up to 90 EtherNet/IP Nodes
- Supports DLR, Star, and Linear topologies
- Supports Dual-IP or Linear/DLR modes
- Supports up to 32 Socket interfaces
- Supports up to 90 EtherNet/IP Nodes
- Integrated Motion: None (0 Axes)
- Programming:
- Requires Studio 5000 Logix Designer® application (v29.00 or later recommended)
- Supported Languages: Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), Sequential Function Chart (SFC)
- Requires Studio 5000 Logix Designer® application (v29.00 or later recommended)
- Controller Tasks: Up to 32 tasks; 1000 programs per task
- Power Requirements:
- Module (MOD) Power: 18-32V DC input; 450 mA max draw
- Sensor/Actuator (SA) Power: 0-32V DC / 0-240V AC (47-63 Hz) input range
- Module (MOD) Power: 18-32V DC input; 450 mA max draw
- Power Dissipation: 8.5 W (max)
- Mounting: DIN Rail (Horizontal only)
- Enclosure: None (Open-style); Requires installation in a suitable enclosure
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Dimensions (H x W x D approx.): 144 x 98 x 137 mm (5.67 x 3.86 x 5.39 in)
- Security: Features digitally-signed firmware, change detection, logging, role-based access control
Important Notes:
- This controller requires separate Removable Terminal Blocks (RTBs) for MOD and SA power connections (e.g., Allen-Bradley Cat. No. 5069-RTB64-SCREW or 5069-RTB64-SPRING)
- Ensure compatibility with your existing system and required Studio 5000 Logix Designer software version
