Product Description

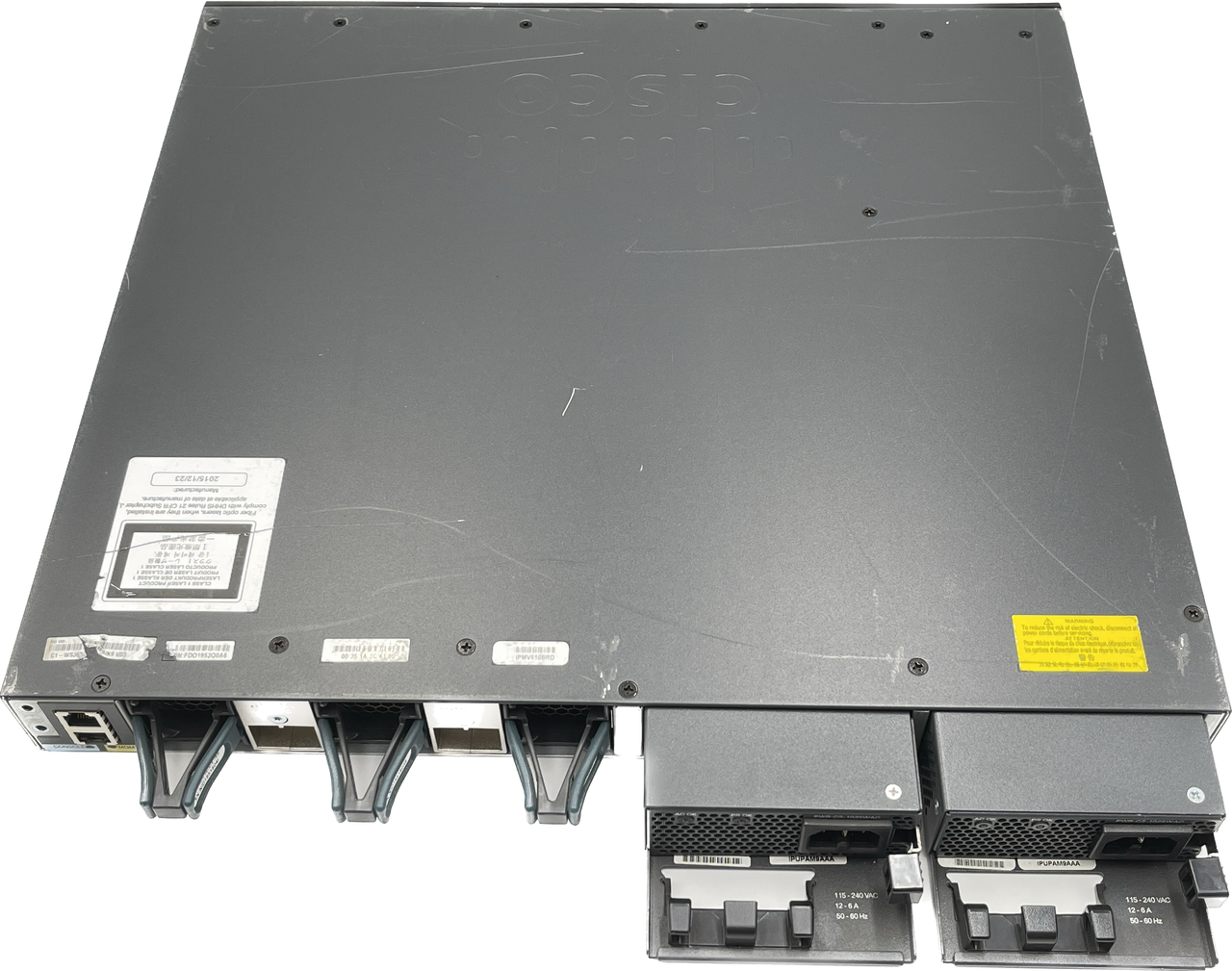

Cisco WS-C3650-48PS-S 48 Port PoE 4x1G Uplink IP Base Switch With 2 Power Supply Condition: Refurbished and restored to factory settings. Expect minor scratches or cosmetic dents from previous use. Details: Fully tested, cleaned, and reset using PuTTY console. Factory default settings restored; startup configurations and NVRAM wiped via the write erase command. All ports tested and inspected for functionality and physical integrity. Units monitored for any issues during testing, with details disclosed if applicable. Note: Photos represent typical product condition..
Model Number: WS-C3650-48PS-S
Ports & Interfaces
Downlink Ports: 48 x 10/100/1000 Gigabit Ethernet ports
Uplink Ports: 4 x 1 Gigabit Ethernet SFP (Small Form-Factor Pluggable) ports (fixed)
Console Ports:
1 x USB Mini-B
1 x RJ-45 Ethernet (for console connection via RJ45-to-DB9 cable)
Management Port: 1 x RJ-45 Ethernet management port
Power over Ethernet (PoE)
PoE Standard: PoE+ (IEEE 802.3at)
PoE Ports: All 48 downlink ports support PoE+ (up to 30W per port)
Total Available PoE Power: 390W (with the default 640W AC power supply)
Performance
Switching Capacity: 176 Gbps
Forwarding Rate: 77.37 Mpps (Million packets per second)
Stacking Bandwidth: 160 Gbps (Requires optional StackWise-160 module)
Hardware & Memory
RAM: 4 GB
Flash Memory: 2 GB
CPU: Multicore CPU
Stacking
Technology: Cisco StackWise-160 (Requires optional C3650-STACK-KIT stacking module and cables)
Maximum Stack Members: 9 switches
Stack Bandwidth: 160 Gbps
Layer 2 Features
MAC Address Table Size: 32,000 entries
VLANs: Up to 4,094 VLAN IDs; 1,000 Switched Virtual Interfaces (SVIs)
Protocols: IEEE 802.1D Spanning Tree, PVST+, RSTP (802.1w), MSTP (802.1s), PortFast, UplinkFast, LACP (802.3ad), PAgP, LLDP (802.1ab), CDPv2, VTPv2, DTP, Jumbo Frames (up to 9198 bytes), Voice VLAN.
Layer 3 Features (IP Base Software)
Routing Protocols: Static IP routing, RIPv1, RIPv2, EIGRP Stub, RIPng (IPv6). Note: Full EIGRP, OSPF, BGP require IP Services license.
Capacity: 24,000 IPv4 routes (ARP + learned)
Multicast: PIM Stub mode supported.
Other: Policy-Based Routing (PBR), ARP support, IGMP Snooping v1/v2/v3, MLD Snooping, DHCP Server/Relay/Snooping.
Wireless Controller Integration (Optional)
Wireless Capacity per Switch: Up to 40 Gbps
Max Access Points per Switch/Stack: 50
Max Wireless Clients per Switch/Stack: 1000
Supported AP Series (at time of product relevance): 3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040.
Management & Security
Management: CLI (via Console, Telnet, SSH), SNMP v1/v2c/v3, RMON (1, 2, 3, 9), Web UI (HTTP/HTTPS), Cisco DNA Center compatible (potentially with limitations).
Security: Port Security, DHCP Snooping, Dynamic ARP Inspection (DAI), IP Source Guard, Private VLANs, ACLs (Port-based, Router, VLAN), IEEE 802.1X Authentication, TACACS+, RADIUS, Secure Shell (SSH), MACsec encryption support.
Other Details
Before requesting a return, please contact us, as we can often times troubleshoot problems through email. All returns must include all original items in the same condition they were sent. We will also issue an RMA number which must be present on the exterior of the returned box. Your return will not be processed without your RMA number on the box. The buyer is responsible for all return shipping charges.We are not responsible for any technical specifications, compatibility, fitment, application issues, buyer’s remorse, or if an item was purchased by mistake. Any return or refund requested for these reasons will be charged a 20% restocking fee.
We offer the following return guidelines for the products we have available:
New other – All of our new product falls into this category since manufacturer packaging has usually been opened or is otherwise not in retail condition. We offer a full refund of the purchase price less shipping charges for “New other” products that are not in working condition for up to 30 days after receipt.
Seller refurbished – Our refurbished items have been tested and verified by our in-house staff and we guarantee the tested components for 30 days after receipt. We will refund the purchase price less shipping charges for “Seller refurbished” products that are not in working condition when received.
Used – All used products carry a 30 day non-DOA warranty. These products may not be 100% functional and only basic power on capabilities are guaranteed. If a “used” product is received and will not power on, we will issue a full refund less shipping charges. Partial refunds will not be issued for non-working components, and a 20% restocking fee will be charged to all returns of product that do power on.
For parts or not working – There are no warranties or return options available for merchandise that is listed as “for parts or not working”. All returns will be processed with a 20% restocking fee.
