Product Description

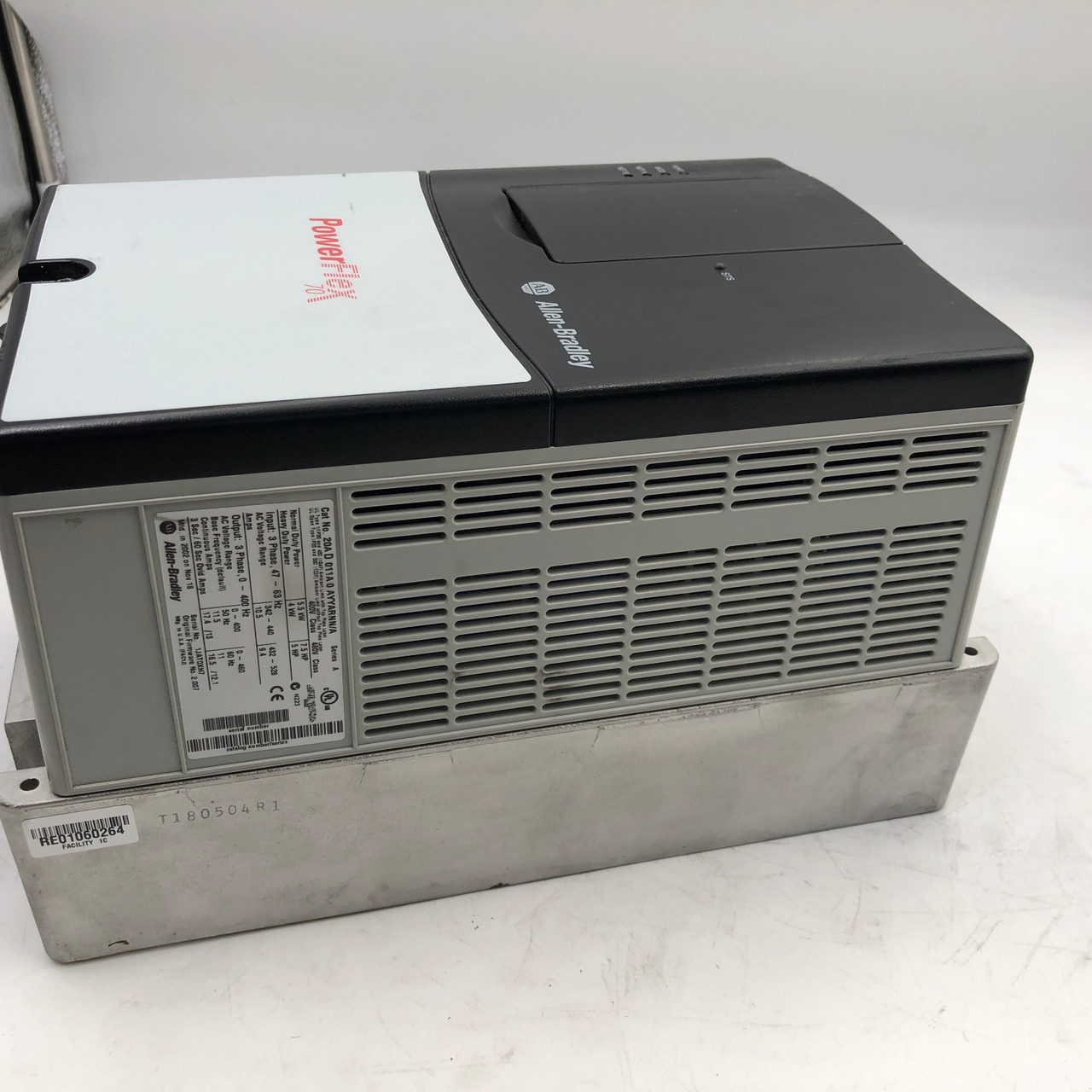

This listing is for a new Allen-Bradley PowerFlex 70 AC Variable Frequency Drive (VFD), Catalog Number 20AD011A0AYYARNN, Series A. This drive provides 3-phase AC induction motor speed control, utilizing Standard Control firmware with selectable V/Hz or Senseless Vector control algorithms. The drive accepts 380-480V AC input and delivers 0-460V AC output with a current rating of 11A and a power rating of 7.5HP. Key features include an installed Remote I/O (RIO) communication adapter for network connectivity, and a blank cover, allowing for remote or PLC-based operation. Protection features such as overload, overvoltage, and under voltage protection are built-in.
Condition:
New No Box. This item is new and unused but does not include the original manufacturer's box or packaging.
Key Features & Specifications:
Manufacturer: Allen-Bradley (Rockwell Automation)
Series: PowerFlex 70
Model / Part Number: 20AD011A0AYYARNN
Series: A
Input Voltage: 380-480V AC (±10%), 3-Phase, 47-63 Hz
Output Voltage: 0-460V AC, 3-Phase
Output Frequency: 0-400 Hz
Output Current (Normal Duty - ND): 11 Amps
Power Rating (Normal Duty - ND): 7.5 HP / 5.5 kW
Control Method: Standard Control (Selectable Sensorless Vector or V/Hz)
Enclosure: IP20 / NEMA Type 1 / Panel Mount
Frame Size: C
Braking: Internal Dynamic Brake Transistor (IGBT) AND Internal Brake Resistor Included
Interface: Blank Cover (No HIM installed)
EMC Filter: Included (Standard Filter for Frame C)
Communication Adapter: Remote I/O (RIO) Installed
Safe-Off Feature: No
Feedback Option: None
Overload: 110% for 60s, 150% for 3s (approximate based on 1 min/3 sec ratings)
Dimensions (HxWxD approx.): 300 x 185 x 180 mm (11.81 x 7.28 x 7.08 in)
Weight (Approx.): 6.89 kg (15.2 lbs)
Operating Temperature: 0°C to +50°C (32°F to 122°F)
Approvals: UL, CSA, CE
Additional Information:
Requires a compatible HIM (keypad/display) or network connection for programming and detailed monitoring.
Supports various protection features including overvoltage, undervoltage, overcurrent, motor overload, etc.
